Battery Charge and Discharge Test Equipment
UN38.3, UL1642, IEC62133 and ECE R100
Power Battery Cell Testing Equipment Series
-Equipment mode: BTS-5V500A8CH
-Input voltage: 400Vac±10% (Customizable compatible with local power grids)
-Input frequency: 50Hz±5Hz (Input frequency can be customized)
-Output voltage range: Charge: 0V～5V, discharge: 1.5V～5V (Discharge voltage 0V can be customized)
-Voltage accuracy: ±0.05%F.S. @25±5℃
-Output current range: 0.05A~500A (Charge and discharge)
-Current accuracy/automatic grading:
Gear 1: 0.05A~50A, ±0.05%F.S. @25±5℃
Gear 2: 50A~100A, ±0.05%F.S. @25±5℃
Gear 3: 100A~200A, ±0.05%F.S. @25±5℃
Gear 4: 200A~500A, ±0.05%F.S. @25±5℃
-Size (W*D*H):
Discharge 1.5V: 600*600*1800mm
Discharge 0V: 800*600*2000mm
Battery Module Testing Equipment 60V Series
-Equipment mode: BTS-60V300A2CH
-Input voltage: 400Vac±10% (Customizable compatible with local power grids)
-Input frequency: 50Hz±5Hz (Input frequency can be customized)
-Output voltage range: 5V～60V (Charge and discharge)
-Voltage accuracy: ±0.05%F.S. @25±5℃
-Output current range: 0.1A~300A (Charge and discharge)
-Current accuracy/automatic grading:
Gear 1: 0.1A~100A, ±0.05%F.S. @25±5℃
Gear 2: 100A~200A, ±0.05%F.S. @25±5℃
Gear 3: 200A~300A, ±0.05%F.S. @25±5℃
-Size (W*D*H): 600*800*1800mm (W*D*H)
Battery Module Testing Equipment 120V Series
-Equipment mode: BTS-120V500A2CH
-Input voltage: 400Vac±10% (Customizable compatible with local power grids)
-Input frequency: 50Hz±5Hz (Input frequency can be customized)
-Output voltage range: 5V～120V(Charge and disacharge. Discharge voltage 0V can be customized）
-Voltage accuracy: ±0.05%F.S. @25±5℃
-Output current range: 0.1A~500A (Charge and discharge)
-Current accuracy/automatic grading:
Gear 1: 0.1A~100A, ±0.05%F.S. @25±5℃
Gear 2: 100A~200A, ±0.05%F.S. @25±5℃
Gear 3: 200A~300A, ±0.05%F.S. @25±5℃
Gear 4: 300A~500A, ±0.05%F.S. @25±5℃
-Size (W*D*H): 800*800*2000mm (W*D*H)
Battery Module Testing Equipment 150V Series
-Equipment mode: BTS-150V500A2CH
-Input voltage: 400Vac±10% (Customizable compatible with local power grids)
-Input frequency: 50Hz±5Hz (Input frequency can be customized)
-Output voltage range: 5V～150V
-Voltage accuracy: ±0.05%F.S. @25±5℃
-Output current range: 0.1A~500A (Charge and discharge)
-Current accuracy/automatic grading:
Gear 1: 0.1A~100A, ±0.05%F.S. @25±5℃
Gear 2: 100A~200A, ±0.05%F.S. @25±5℃
Gear 3: 200A~300A, ±0.05%F.S. @25±5℃
Gear 4: 300A~500A, ±0.05%F.S. @25±5℃
-Size (W*D*H): 900*800*2000mm (W*D*H)
Battery Pack Testing Equipment 750V Series
-Equipment mode: BTS-750V500A2CH-350KW
-Input voltage: 400Vac±10% (Customizable compatible with local power grids)
-Input frequency: 50Hz±5Hz (Input frequency can be customized)
-Output voltage range: 30V～750V (Charge and discharge)
-Voltage accuracy: ±0.05%F.S. @25±5℃
-Output current range: 0.1A~500A (Charge and discharge)
-Current accuracy/automatic grading:
Gear 1: 0.1A~100A, ±0.05%F.S. @25±5℃
Gear 2: 100A~200A, ±0.05%F.S. @25±5℃
Gear 3: 200A~300A, ±0.05%F.S. @25±5℃
Gear 4: 300A~500A, ±0.05%F.S. @25±5℃
-Size (W*D*H): 2300*850*2000mm (Subject to available products)

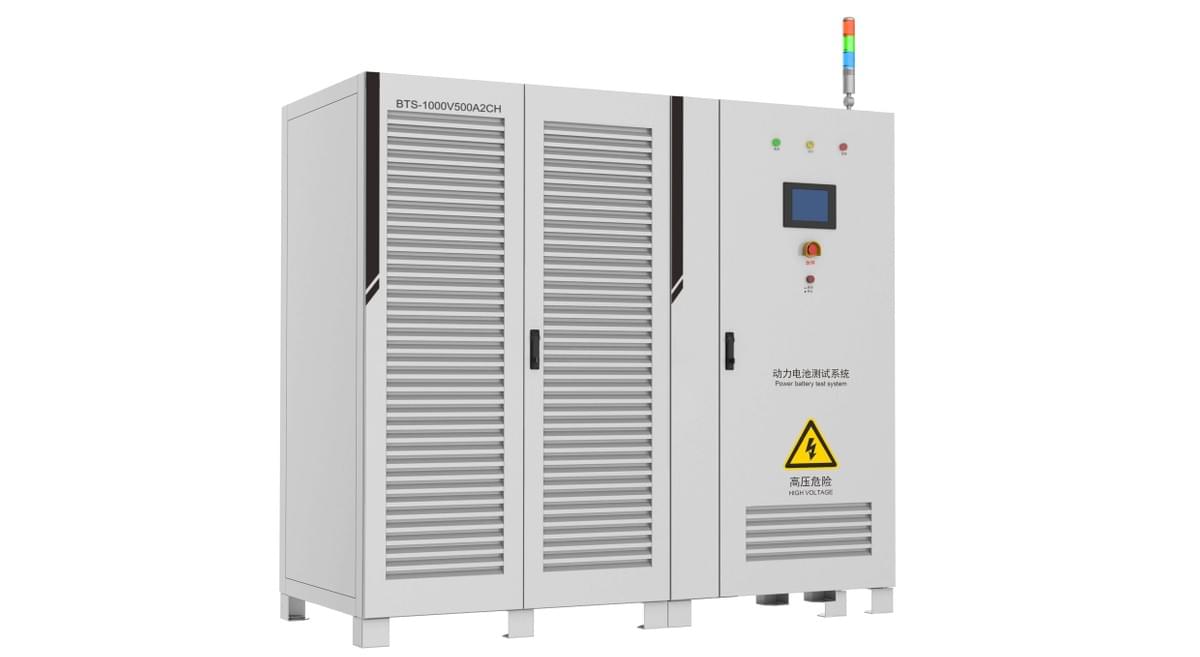

Battery Pack Testing Equipment 1000V Series
-Equipment mode: BTS-1000V500A2CH-600KW
-Input voltage: 400Vac±10% (Customizable compatible with local power grids)
-Input frequency: 50Hz±5Hz (Input frequency can be customized)
-Output voltage range: 30V～1000V (Charge and discharge)
-Voltage accuracy: ±0.05%F.S. @25±5℃
-Output current range: 0.1A~500A (Charge and discharge)
-Current accuracy/automatic grading:
Gear 1: 0.1A~100A, ±0.05%F.S. @25±5℃
Gear 2: 100A~200A, ±0.05%F.S. @25±5℃
Gear 3: 200A~300A, ±0.05%F.S. @25±5℃
Gear 4: 300A~500A, ±0.05%F.S. @25±5℃
-Size (W*D*H): 3300*1000*2000mm (Subject to available products)
Battery Pack Testing Equipment 1500V Series
-Equipment mode: BTS-1500V500A2CH-600KW
-Input voltage: 400Vac±10% (Customizable compatible with local power grids)
-Input frequency: 50Hz±5Hz (Input frequency can be customized)
-Output voltage range: 50V～1500V (Charge and discharge)
-Voltage accuracy: ±0.05%F.S. @25±5℃
-Output current range: 0.1A~500A (Charge and discharge)
-Size (W*D*H): 3300*1000*2000mm (Subject to available products)
